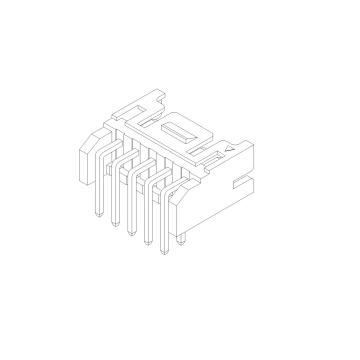

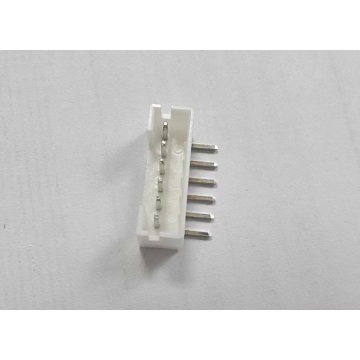

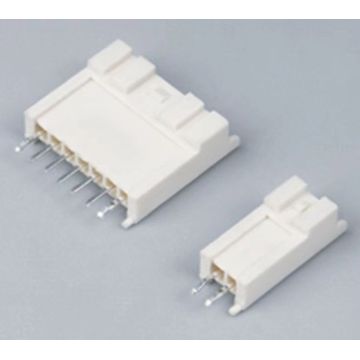

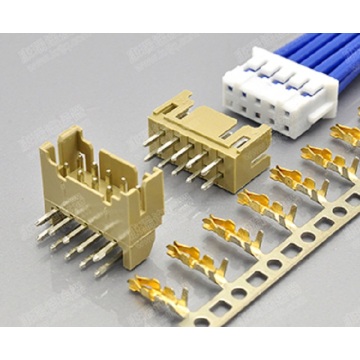

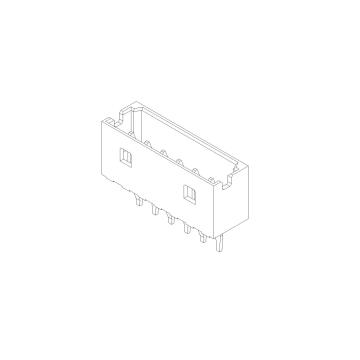

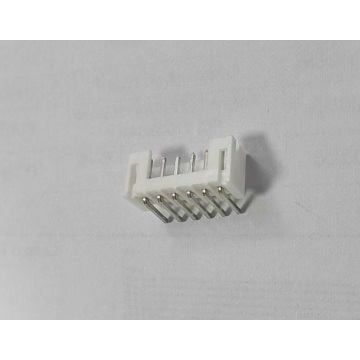

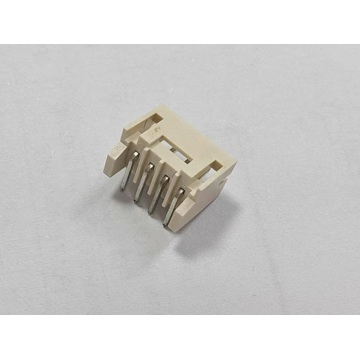

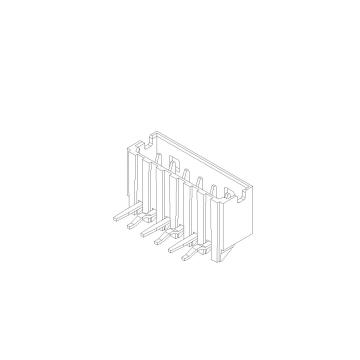

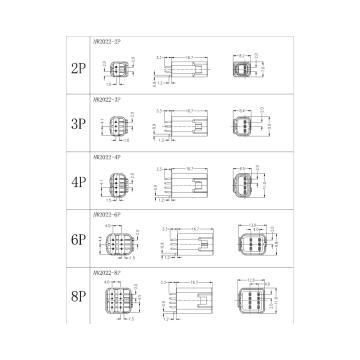

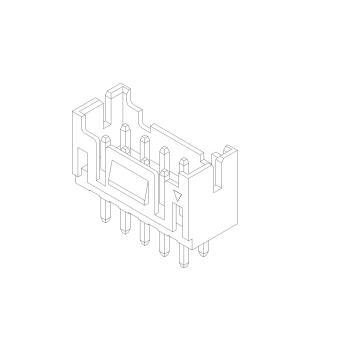

Overview of 2.0mm Pitch Wire To Board Connectors The 2.0 mm PH connector is a low- profile and compact component delivering dependable service in requirements for high density connection to printed circuit boards.
Designed harsh environments which are frequently subjected to heat and vibration such as in heavy equipment vehicles and batteries
Delivers up to a current rating of 2.0 A and 250 V, applicable for American Wire Gauge (AWG) #24, #25, #26, #27, #28, #30, #31, #32.
Enclosing this connector is a crimp style lock designed by Antenk and a special configuration which prevents users from inverted insertion.

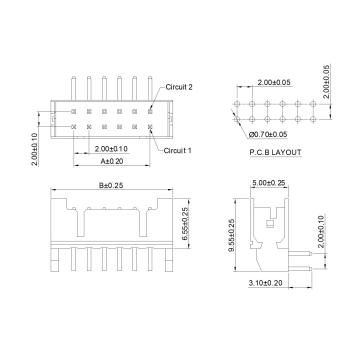

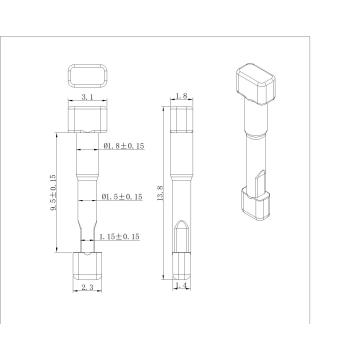

General Specifaction 2.0mm Wire To Board Connectors
Contact Pitch 2.0mm
No.of Contacts 2 to 16 positions
Current 2A (AWG #22 to #28)
Compatible Cross Jst PH Connector Series
Current Rating: 2A
Voltage Rating: 250V
Temperature Range: -25°C~+85°C
Contact Resistance: 20m Omega Max
Insulation Resistance: 1000M Omega Min
Withstanding Voltage: 800V AC/minute
Advantages 2.0mm Wire To Board Connectors
2.0 mm pitch serves as the best choice for densely crowded electronics systems for its small, square-edged configuration, ruggedized and shock resistant feature.
Caters Power, Signal and Grounding Contact Needs
This connector can either stand as power contacts, signal contacts or both as power and signal contacts or a signal and grounding contact. The wiring harness interconnects the PCB to various components that sends signals and power to other electronic devices.
Safe and Reliable
2.0 mm pitch connectors ensures safety, system protection and performance with its bonded metallic conduits and multiple grounding points preventing fire hazards, component damage, overheating and possible electrocution.
ROHS Compliant
The product does not contain restricted chemicals in concentrations not complying with ROHS standards. Thus, for its components, the products can be worked upon at high temperatures required by lead-free soldering.
Features and Benefits of 2.0mm Pitch Wire To Board Connectors

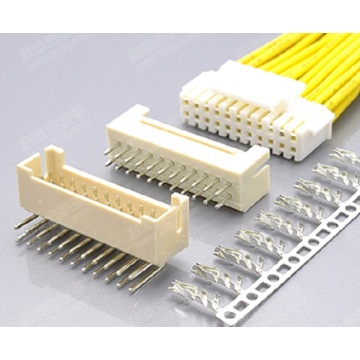

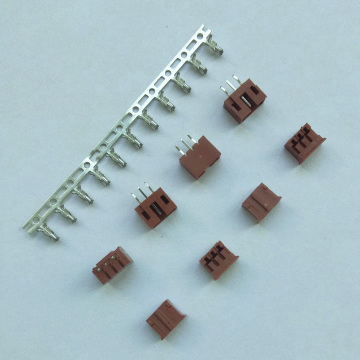

Smallest pitch for positive lock Wire-to-Board crimp system
Provides space savings for mounting other components
mating retention with low mating and unmating forces
Wide header variations to provides customers with many choices and design flexibility
Easy to mate and unmate

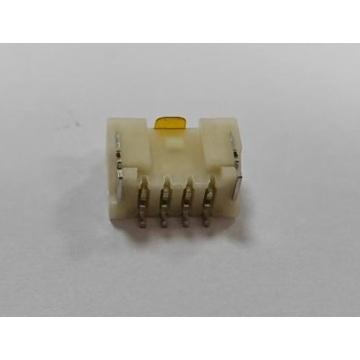

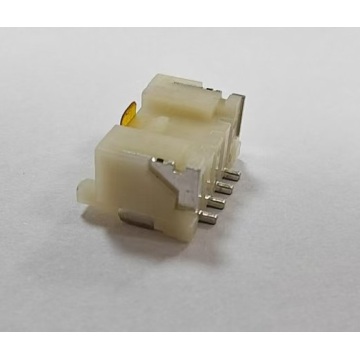

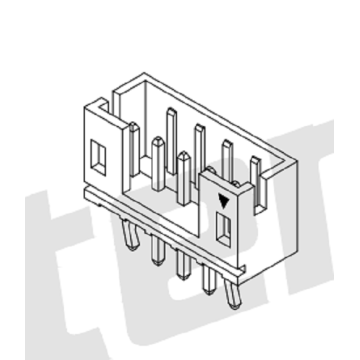

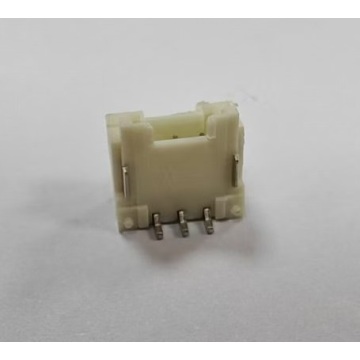

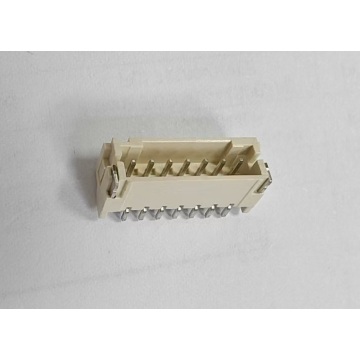

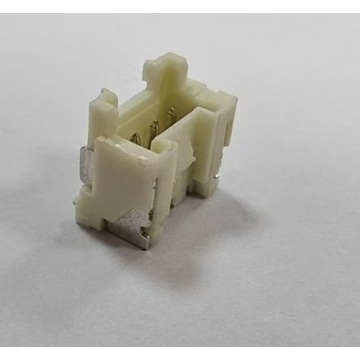

Space saving SMT Mounting that provides assembly and cost efficiencies
Automated assembly reduces manual labor processes
Application industry of 2.0mm Pitch Wire To Board Connectors:
Automotive
Electronic modules
Consumer
Air conditioner Mobile POS terminals Notebook PCS mart meters TVs Televisions UAVs/Drones
Industrial
Servo motor
Medical
Patient Monitor
This is not a definitive list of applications for this product. It represents some of the more common uses.
